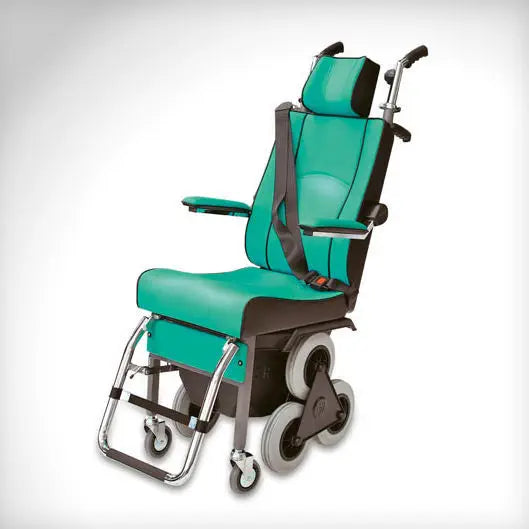

Scoiattolo Electric Stair Climbing Hand Truck

Scoiattolo 2000/L Electric Stair Climber

Scoiattolo stair climber is a comfortable electric seat designed to help people with mobility difficulties quickly and easily overcome architectural barriers.

Features

• It features a unique electric drive system that does not require stationary wall mounting; the accompanying person simply guides the vehicle and uses the appropriate buttons to give ascent and descent commands.
• Two front swivel wheels allow it to be used on level surfaces like a standard wheelchair.
• It is comfortable for the patient, as the movement of the three wheels ensures smooth control of the lift.

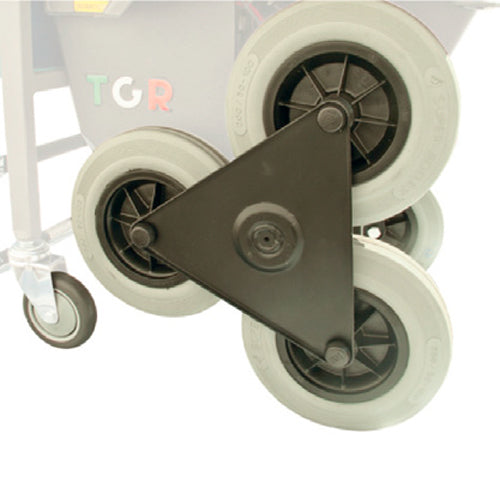

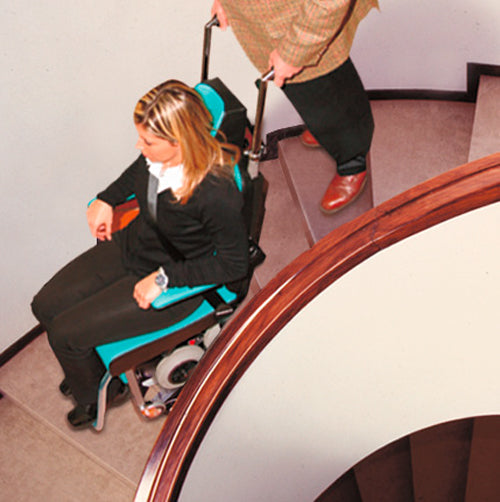

• Thanks to the control system made of triangular wheels, it can climb any type of stairs – straight, spiral, or wedge-shaped.
• Scoiattolo 2000 stair climber features a comfortable, ergonomic seat made of high-density material and covered with fire- and stain-resistant upholstery.
• The seat has double raised armrests that make transferring into and out of the lift easier, a headrest, and adjustable leg supports, ensuring a comfortable position for the person being lifted.

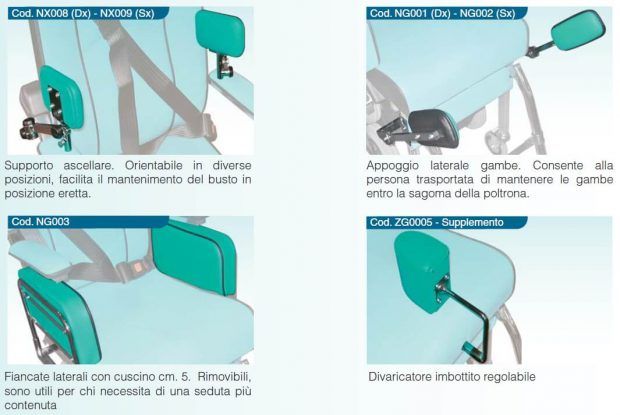

• The seat has double, adjustable armrests and head and leg supports designed to maintain proper posture. Additional supports can be ordered separately.
• Energy saving: automatic shut-off after a few minutes of inactivity.
• The emergency support stand allows the vehicle to stand completely stably on the stairs in case of an accident.
• Non-slip and non-marking rubber wheels.
• For maximum comfort, a version with legs equipped with footplates can be purchased (available as an additional order).

Technical Specifications

• Maximum transportable weight: 130 kg
• Electronic system controlling the driving phase, maintaining a constant speed in both directions
• Climbing speed per step: 3 seconds
• Rechargeable 12 V 26 Ah sealed maintenance-free lead-acid battery
• 12 V 150 W motor
• Climbing range: 72 steps at maximum transportable weight
• Battery charge level indicator during travel
• Integrated or external electronic battery charger
• Two-color LED indicator showing when the battery charge level is reached during charging
• Automatically engaging electromagnetic brake in the triangular movement
• Automatically engaging brake operating on each block of wheels
• Safety pin that engages in the transmission system in case of failure, blocking the vehicle's movement
• Support stand allowing the vehicle to be placed completely stably on the stairs in case of an accident
• Height-adjustable handles
• Folding armrests
• Electric driving controls on the steering wheel
• Emergency button
• On/off buttons
• Minimum step depth: 12 cm
• Step height from 4 to 20 cm
• An optional version for climbing stairs up to 24 cm high can be ordered
• Option to order the vehicle with an on/off key switch

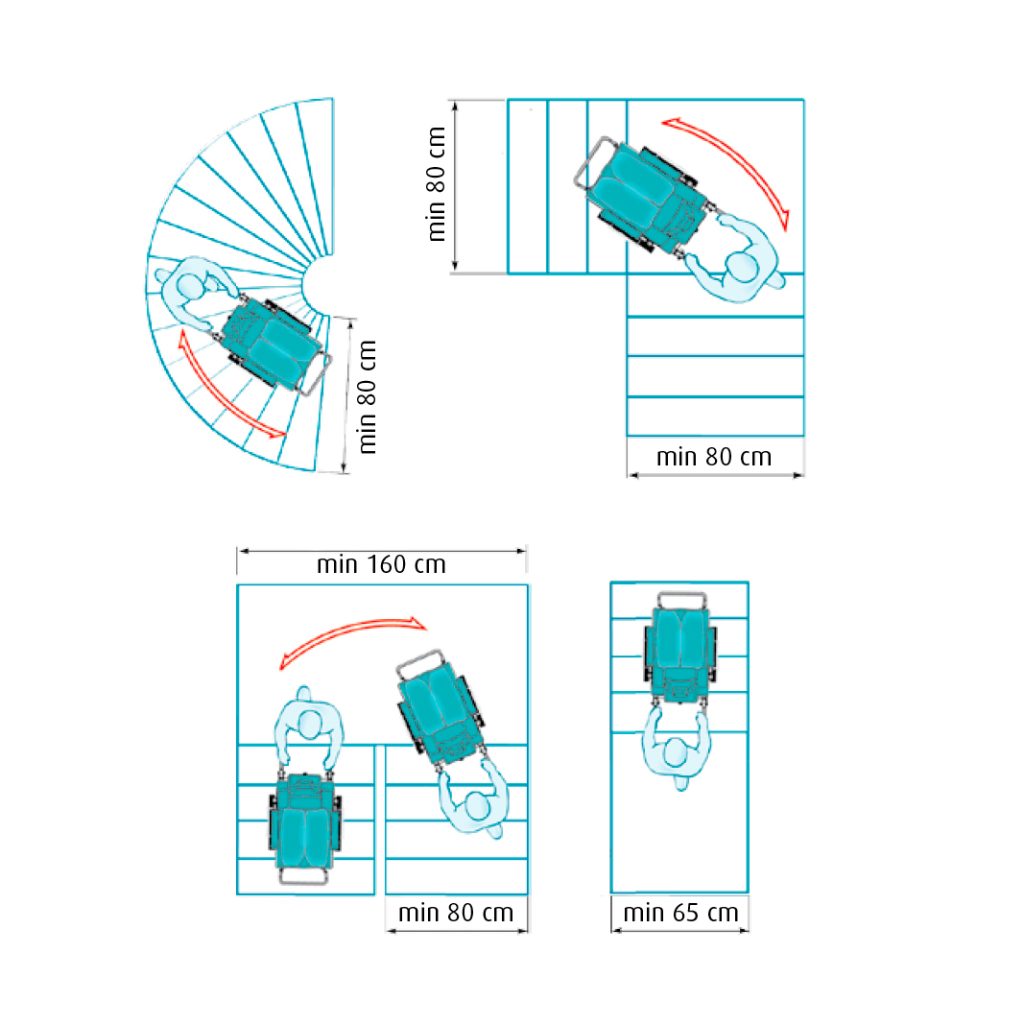

• Minimum maneuvering space in an L-shaped area: 80 x 80 cm
• Minimum maneuvering space in a U-shaped area: 80 x 160 cm
• Minimum stair width: 65 cm
• Maximum climbing gradient on straight stairs: 40°, corresponding to an 84% gradient
• Minimum radius of spiral stairs: 130 cm
• Maximum internal usable gradient of spiral stairs: 40°, corresponding to an 84% gradient
• When using the stairs, the companion must not leave the lift, except in emergency cases; • Non-slip and stain-resistant wheels
• Seat with anatomically shaped high-density padding and fire-resistant, stain-resistant cover
• Safety belt
• Audible warning pin: an electric warning pin that activates during travel if the lift's tilt exceeds the user's safety limits.

Delivery within 15 business days.

Important. Stair climbers may be eligible for compensation through the home adaptation program for disabled people. To obtain the most accurate and reliable information about the compensation procedure, contact the social support department of your local municipal administration.

https://youtu.be/_GYqIt8Dov0
